SEMI AUTOMATICBLOWING MACHINE

images

High Production 600ML 1000ML 1500ML Semi Automatic Plastic PET Water Bottle Machine

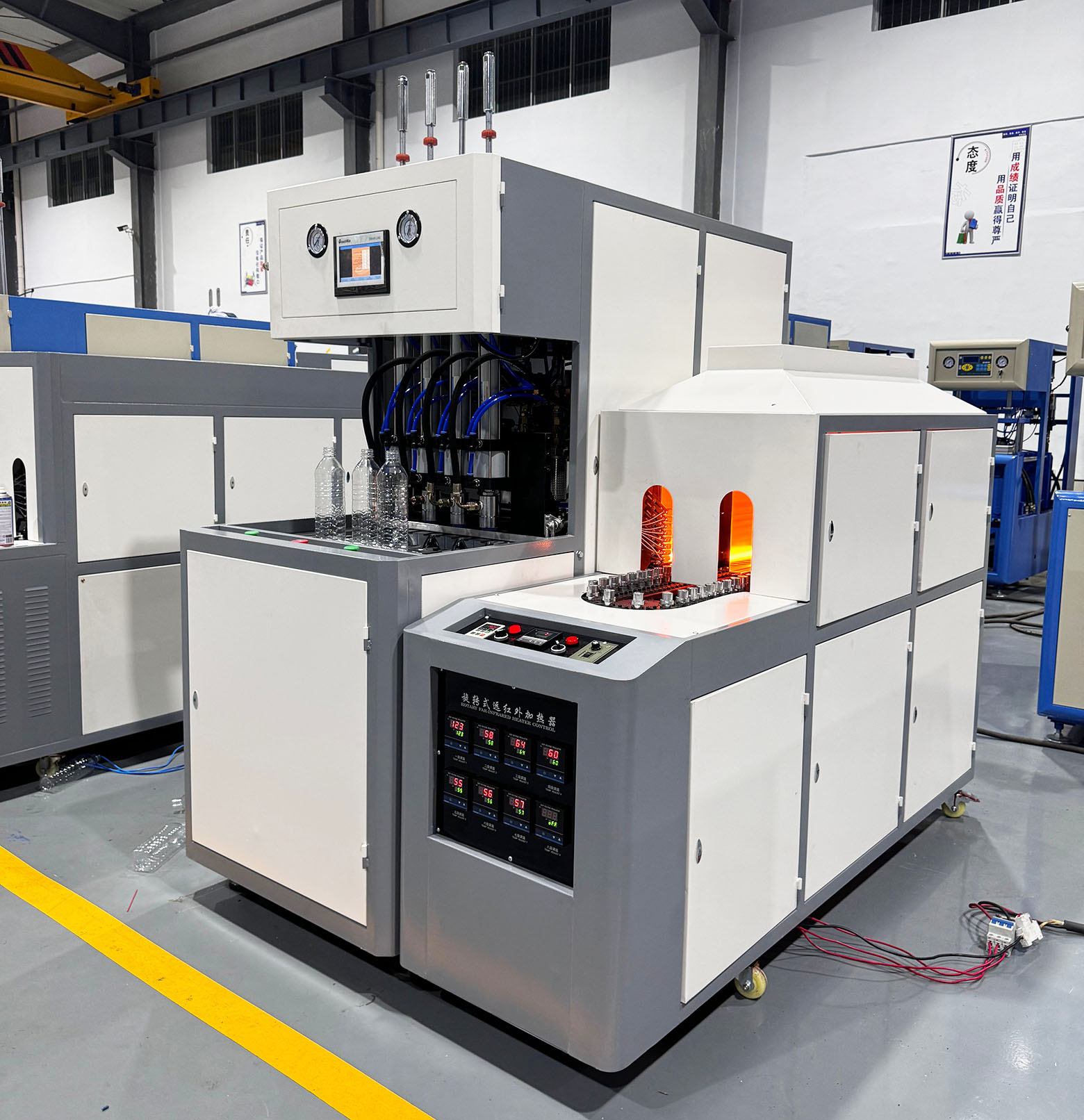

600-800BPH Two cavity semiautomatic bottle blow molding machine can produce two plastic bottle once. It is very mature PET bottle making machine. It is widely used to produce 100-2000ml carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Volume of product:0.1L-2L Production capacity:600-800 psc/hour Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.

Model
BG-2000A High Quality 800ML 3500ML 5000ML Semi Automatic Pet Blow Mach 5 Liter Bottle Blow Moulding Machine Mineral Water Bottle Machine
Theoretical output
1800-2200 pcs/h


Finished bottle
Max. bottle volume
1.5 Liters
Max. neck diameter
38 mm
Max. bottle diameter
110 mm
Max. bottle height
350 mm

Mold specifications
Cavity
4 cavity
Mold thickness
110mm-160mm
Open stroke
320 mm

Electrical system
Power voltage
380v/3Phase/50HZ
Installation power
28 kw
Actual power consumption
13 kw
Air source
Recommend air compressor
1.2m³/min 30Kg
Cooling water
Recommend water chiller
3HP
Blower size
Length*width*
height/weight
1600*800*
1850(MM) / 1200 kg
Oven size
Length*width*
height/weight
2260*560*
1480mm(MM) / 300 kg


Tags

pet bottle blow molding machine
