SEMI AUTOMATICBLOWING MACHINE

images

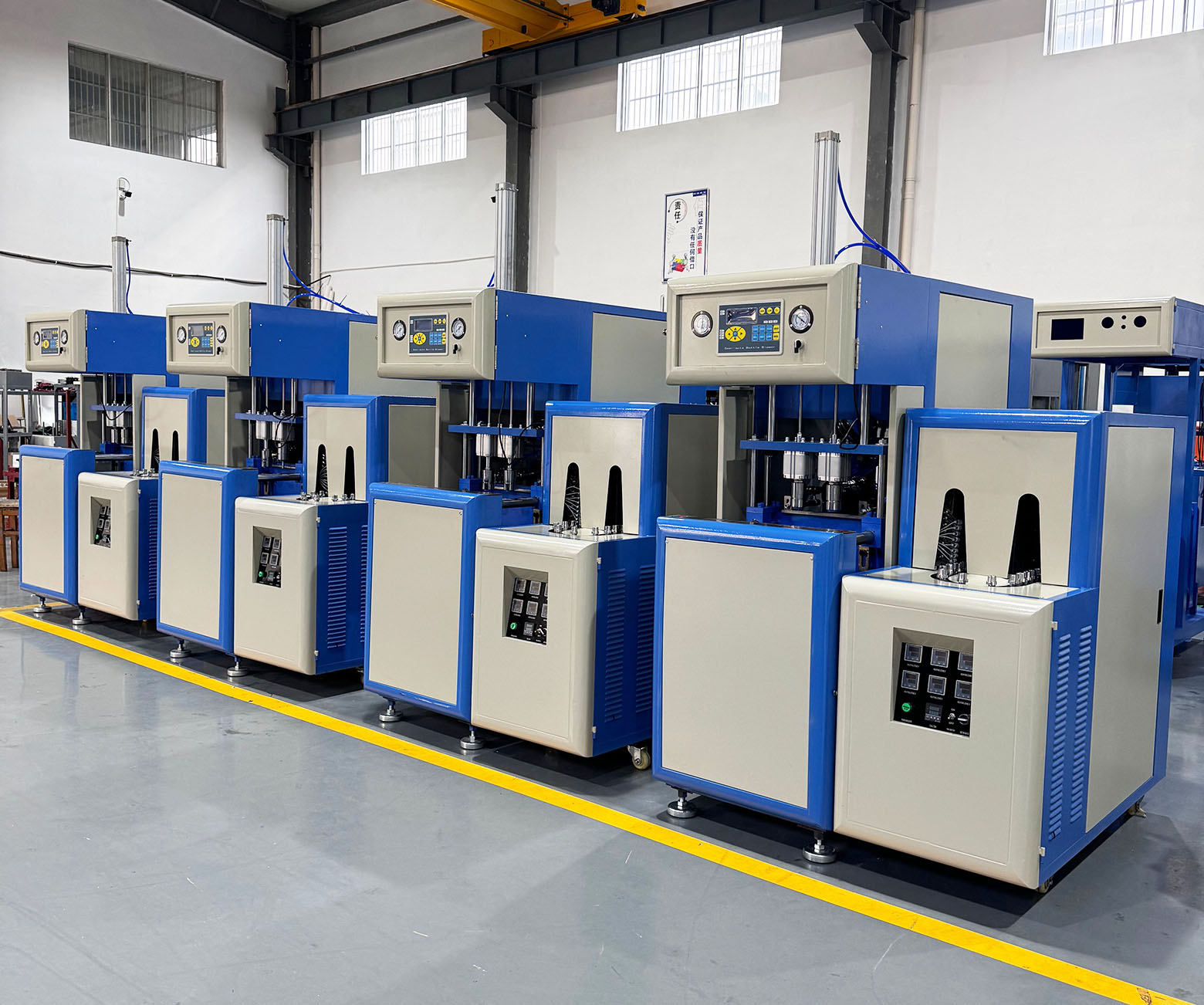

Low Price 2 cavity Semi Automatic Plastic Bottle Making Machine Pet Blowing Machine

0-1-1-5L PET blow moulding machine has a plenty of assistant units to increase the machine's performance such as air storage unit to keep the air pressure stable grease-lubricating unit to reduce mechanical parts' wear and tear and multi-utilization air entry unit to meet air compressed air high-pressure single entry mode and high-pressure & low-pressure double entry mode.

1. Introduction:

pet bottle blow moulding machine price is suitable for producing PET/PE and PP plastic containers
And bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle Oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
2. Our advantage:
1)High safety. High speed with high efficiency.
2)Manual saving, one man is enough for operation the machine.
3)Stable performing with easy maintaining.
4)Imported PLC controlling and man-machine interface computer.
5)Japan Omron inspection sensor.
6)Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; The distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
7)Power saving design that can increase your profits.
8)Segregate type air controlling system, which is designed for avoiding waste pollution.
9)Perfet after-sale service. We can offer you spare parts for free at the first year.



Model
BG-880 Easy Operating Automatic 300ML 600ML 1500ML Plastic Bottle Blowing Molding Machine , PET Bottle Making Machine price
Theoretical output
800-1000 pcs/h


Finished bottle
Max. bottle volume
6 Liters
Max. neck diameter
250 mm
Max. bottle diameter
350mm
Max. bottle height
380mm


Mold specifications
Cavity
28mm-95mm neck size with 2 cavity
Cavity
95mm-250mm neck size with 1 cavity
Mold thickness
110mm-400mm
Open stroke
420 mm

Electrical system
Power voltage
380v/3Phase/50HZ
Installation power
14kw
Actual power consumption
5-8 kw
Air source
Recommend air compressor
1.2m³/min 30Kg
Cooling water
Recommend water chiller
3HP
Blower size
Length*width*
height/weight
1600*730*
1860mm/650kg
Oven size
Length*width*
height/weight
1400*620*
1400mm/350kg


Tags

pet bottle blow molding machine10l-20L Plastic Bottle Making Machine5L water bottle blowing machines

URL of this article: http://www.tzbaoge.com/products/Blow-Molding-Machine/5L-2-5Gallon-Semi-Auto-Blow-Moulding-Machine.html
