China Manufacturing Factory

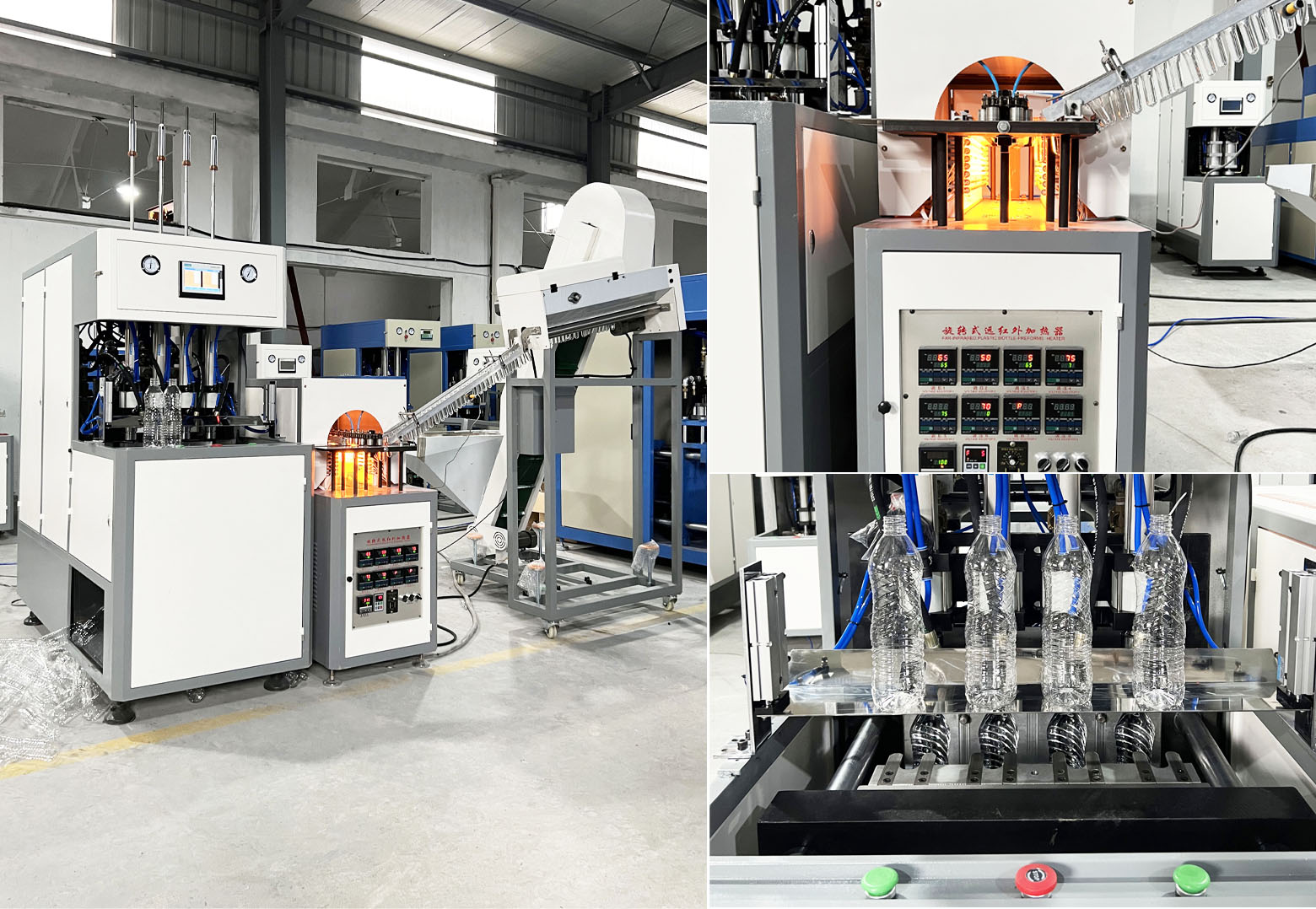

SEMI AUTOMATICBLOWING MACHINE
Plastic PET Sanitizer Gel Spray Hand Sanitizer Bottles Packaging Making Machine
•Adopting double crank to adjust mould , heavy locking mould, stable and fast , Adopt infrared oven to heat the perforrm,the perform rotated and heated equally.
•The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
•The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the
machine.
•The machine can be operated in the step-by-step mode and the semi-auto mode.
•The machine is small with low investment, easy and safe to operate.
Model |
BG-2000B Plastic PET Sanitizer Gel Spray Hand Sanitizer Bottles Packaging Making Machine |
|
Theoretical output |
2200 pcs/h |
|
Max. bottle volume |
1500 ml |
|
Max. neck diameter |
38 mm |
|
Max. bottle diameter |
130 mm |
|
Max. bottle height |
320 mm |
|
Cavity |
4 cavity |
|
Mold thickness |
110mm-200mm |
|
Open stroke |
300 mm |
|
Power voltage |
380v/3Phase/50HZ |
|
Installation power |
35 kw |
|
Actual power consumption |
15 kw |
|
Air source |
Recommend air compressor |
1.2m³/min 30Kg |
Cooling water |
Recommend water chiller |
5HP |
Blower size |
Length*width*
height/weight
|
1800*820*
1900 (MM) / 850 kg
|
Oven size |
Length*width*
height/weight
|
1800*580*
1360 (MM) / 450 kg
|
