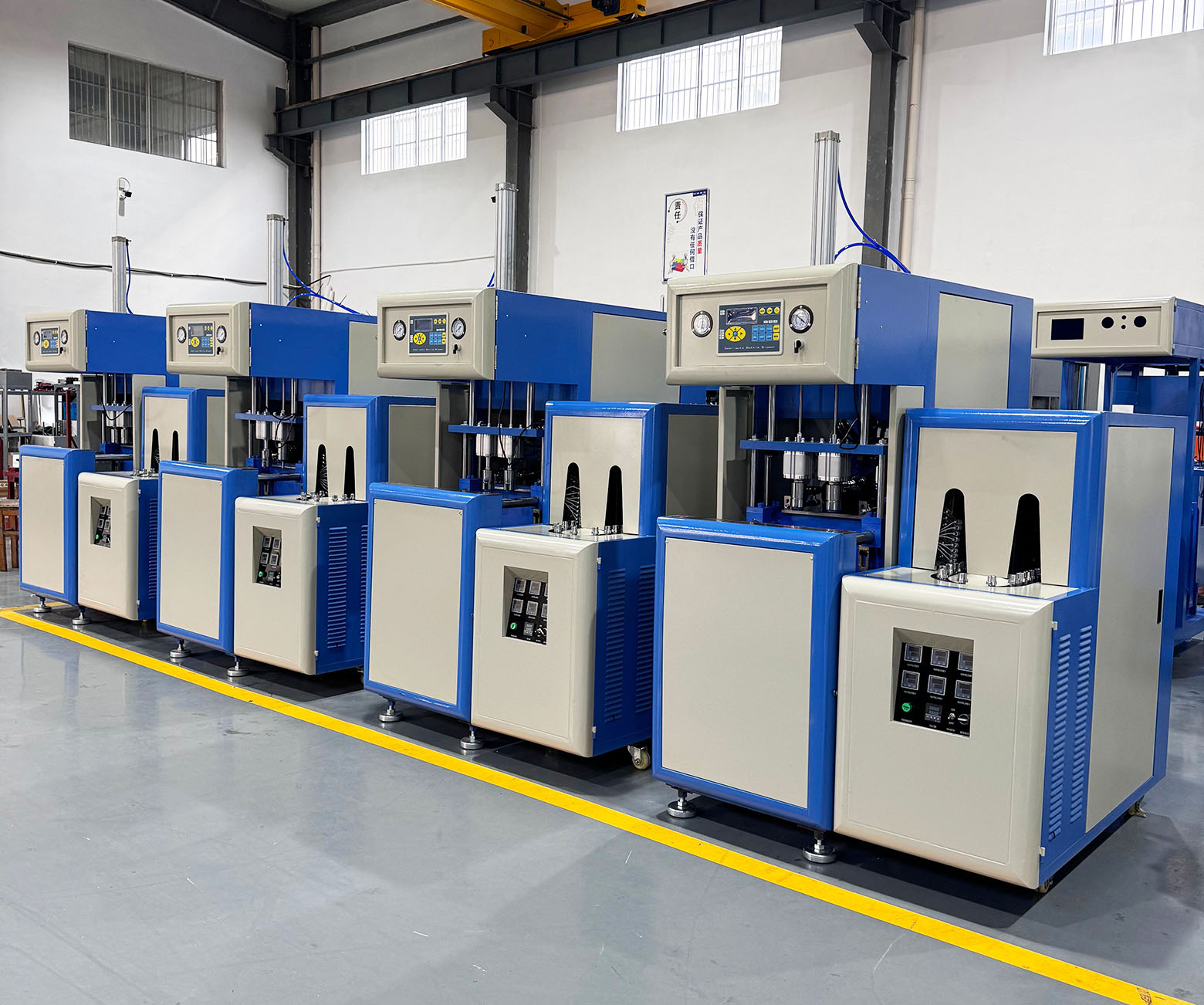

SEMI AUTOMATICBLOWING MACHINE

images

Making 38mm Drinking Bottle Plastic PET Preform Blowing Moulding Machine

1. Produce bottle from 0.1L to 3L

2. Output capacity up to 900 for 0.6L using two-cavity blow mold

3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second

4. Equipped with special designed air storage unit

5. Using Infrared preform heater

6. Independent Temperature Control for different heating lamp to get ideal preform heating results

7. Heating lamps are adjustable in directions to suit various preforms.

8. Operated only by one person without special training.

9. Simple installation & startup adjustment. 10. Waste rate of finished bottle is less than 0.2%.

Blowing 0.1-3 liter PET ordinary bottles, PET hot filling bottles, BOPP high-temperature bottles (one out of four) using four mold cavity abrasive tools to blow 600 ml bottles, the output can be as large as 3000 per hour, advanced PLC control system, time control can be accurate to 0.01 seconds, special air storage device, using infrared lamp heating, strong penetration, preform rotation and heating, orbital revolution, uniform heating, fast and reliable

Different heating lamps are equipped with independent temperature control devices to ensure that the preforms have the ideal heating effect. The direction of the heating lamps can be adjusted according to different preforms. Only one person is required, and no special training is required.

ITEM 3L 2 cavity semi-automatic bottle blowing machine
Clamping force 13T
Clamping stroke 330mm
Max.stretching stroke 440mm
Number of cavities 0.1-3L 2cavity
Theoretical output 0.5-2.5L:800-1500bph
Max.mould thickness 280mm
Mould plate size 490x470mm
Voltage standard 380v/3PH/50Hzorspecoal order
Total power(full loaded) 3-10KW 5-15KW
Min.air compressor 1.2mm3/min3.0Mpa
Blow molding machine 175x60x180cm
Pre - heater 150x70x140cm
Net weight 0.75T
Container volume 0.5-2.5L
Neck diameter range 28-100mm
Container diameter 150mm
Container height 450mm
