SEMI AUTOMATICBLOWING MACHINE

images

10L To 20L Power Saving Easy Operating Water Bottle Plastic Blowing Blow Moulding

10liter big tank pet stretch bottle blow moulding machine price/mineral water bottle making machines

PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

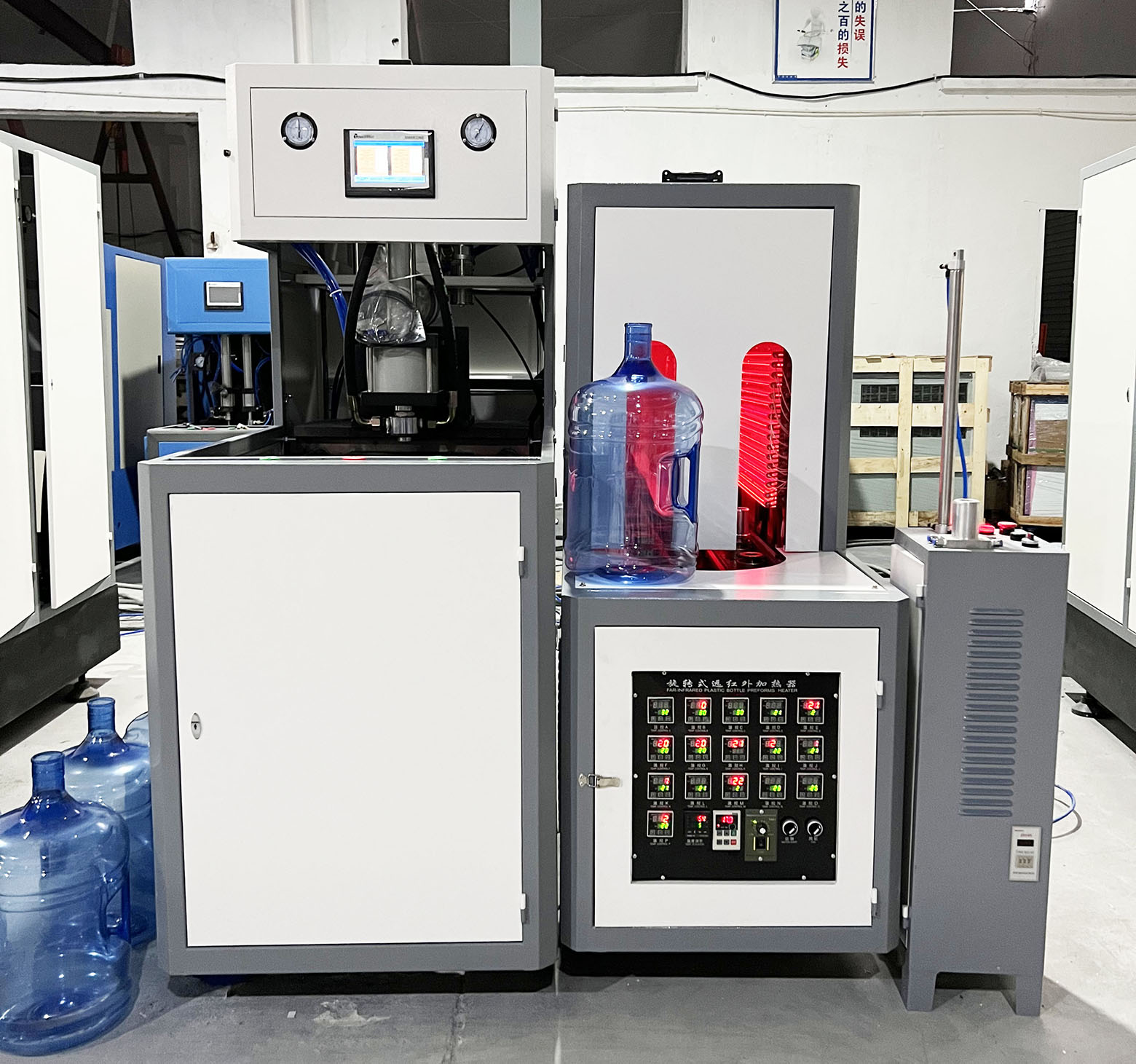

MT-A series Semi Automatic Stretch Blow Molding Machine, including one blower and one heater, used for the series kinds of PET bottle, such as the edible oil bottle,medicinal bottle, drinking bottle, cosmetic jars, Wild-mouth bottle and so on.

1. Introduction:

pet bottle blow moulding machine price is suitable for producing PET/PE and PP plastic containers
And bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle Oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
2. Our advantage:
1)High safety. High speed with high efficiency.
2)Manual saving, one man is enough for operation the machine.
3)Stable performing with easy maintaining.
4)Imported PLC controlling and man-machine interface computer.
5)Japan Omron inspection sensor.
6)Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; The distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
7)Power saving design that can increase your profits.
8)Segregate type air controlling system, which is designed for avoiding waste pollution.
9)Perfet after-sale service. We can offer you spare parts for free at the first year.



Model
BG-100 Economic Power Taizhou Baoge BG-100 18.9L PET Blow Molding Blow Moulding Plastic Blowing Machines
Theoretical output
120 pcs/h


Finished bottle
Max. bottle volume
25 Liters
Max. neck diameter
65 mm
Max. bottle diameter
380 mm
Max. bottle height
600 mm

Mold specifications
Cavity
1 cavity
Mold thickness
190mm-350mm
Open stroke
500 mm

Electrical system
Power voltage
380v/3Phase/50HZ
Installation power
42 kw
Actual power consumption
22 kw
Air source
Recommend air compressor
1.2m³/min 30Kg
Cooling water
Recommend water chiller
5HP
Blower size
Length*width*
height/weight
2290*770*
1900(MM) /1200 kg
Oven size
Length*width*
height/weight
2750*690*
1700(MM)/ 300 kg
