SEMI AUTOMATICBLOWING MACHINE

images

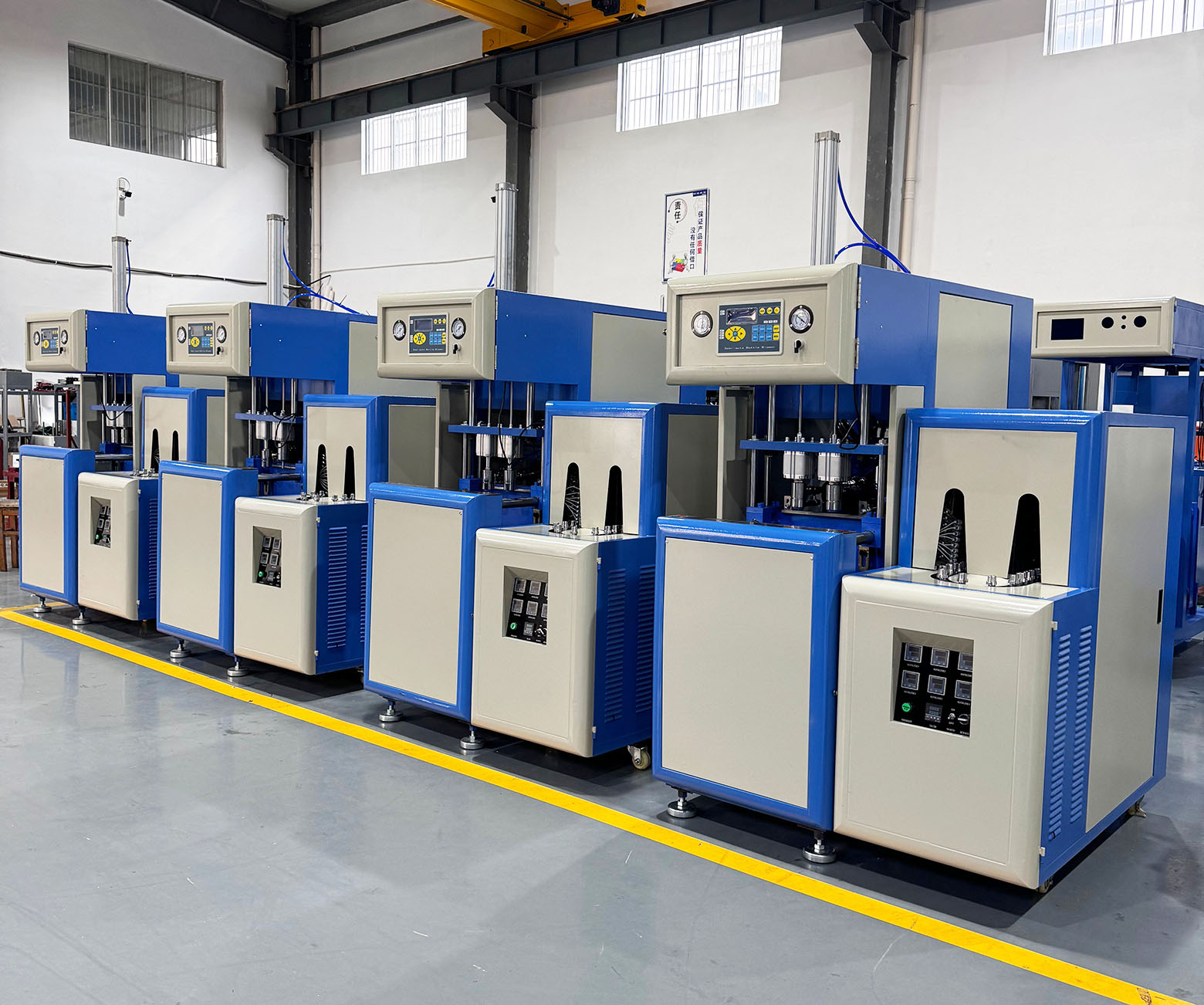

Semi Automatic 2 cavity Souffleuse Bouteille Plastique PET Hand Sanitizer Bottle Blowing Making Machine

•Adopting double crank to adjust mould , heavy locking mould, stable and fast , Adopt infrared oven to heat the perforrm,the perform rotated and heated equally.
•The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
•The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the
machine.
•The machine can be operated in the step-by-step mode and the semi-auto mode.
•The machine is small with low investment, easy and safe to operate.

Introduction:

pet bottle blow moulding machine price is suitable for producing PET/PE and PP plastic containers
And bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle Oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
2. Our advantage:
1)High safety. High speed with high efficiency.
2)Manual saving, one man is enough for operation the machine.
3)Stable performing with easy maintaining.
4)Imported PLC controlling and man-machine interface computer.
5)Japan Omron inspection sensor.
6)Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; The distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
7)Power saving design that can increase your profits.
8)Segregate type air controlling system, which is designed for avoiding waste pollution.
9)Perfet after-sale service. We can offer you spare parts for free at the first year.



Model
BG-880 Semi Automatic 2 cavity Souffleuse Bouteille Plastique PET Hand Sanitizer Bottle Blowing Making Machine
Theoretical output
800-1000 pcs/h


Finished bottle
Max. bottle volume
6 Liters
Max. neck diameter
250 mm
Max. bottle diameter
350mm
Max. bottle height
380mm

Mold specifications
Cavity
28mm-95mm neck size with 2 cavity
Cavity
95mm-250mm neck size with 1 cavity
Mold thickness
110mm-400mm
Open stroke
420 mm

Electrical system
Power voltage
380v/3Phase/50HZ
Installation power
14kw
Actual power consumption
5-8 kw
Air source
Recommend air compressor
1.2m³/min 30Kg
Cooling water
Recommend water chiller
3HP
Blower size
Length*width*
height/weight
1600*730*
1860mm/650kg
Oven size
Length*width*
height/weight
1400*620*
1400mm/350kg
